The reasonable choices of kiln material and kiln car material is one aspect of energy-saving in ceramic firing process, for the roller kiln, tunnel kiln, because the kiln is divided into preheat zone, firing zone, insulation zone and cooling zone, A reasonable refractory material can be selected in the pre heating to the temperature change curve, and the burning zone and the insulation zone with the current ceramic kiln are combined into one, and known as the burning zone in the burning, this stage is Ceramic kiln with the highest temperature, the largest heat loss stage, so the choice of refractory material at this stage is particularly important.

     Kiln and kiln car refractory material selection principle is based on the purpose of thermal insulation, according to the different furnace conditions, taking into account the refractory strength, corrosion resistance and other chemical properties. Under normal circumstances, it is better to Use CCEWOOL aluminum silicate fiber as internal heat preservation, other lightweight refractories as a supplement.

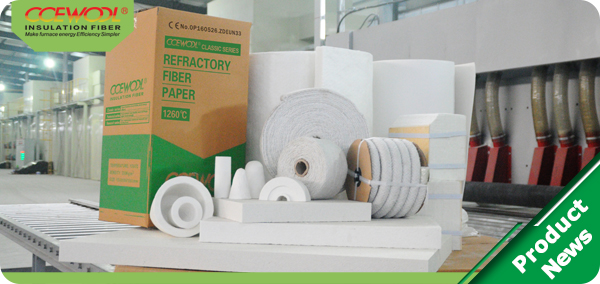

     CCEWOOL aluminum silicate fiber according to the safe working temperature (continuous operating temperature) is divided into: ordinary ceramic fiber blanket, standard ceramic fiber blanket, high purity ceramic fiber blanket, high alumina ceramic fiber blanket, zirconium type ceramic fiber blanket. These products can be used in different parts of the kiln body. Kiln car of Tunnel kiln and rail kiln in the kiln is in an unstable state; therefore, as time and location changes, heat accumulation of kiln car lining brick and heat loss of the kiln car is also changing. Heat storage and heat dissipation of Kiln car is changing with the movement of kiln car. So it should choose lightweight insulation refractory material with small heat accumulation, which is, small bulk density, lower heat capacity, small thermal conductivity. Choosing this type of material will not only help to reduce the temperature difference between the upper and lower kiln and help the product uniform kilning, but also reduce the heat under the kiln car, reduce metal parts car and kiln car temperature.

     The surface and around the brick kiln car lining, due to exposure to high temperature and under load, and under the periodic temperature changes, Therefore, these parts of the material should be able to withstand the high load and resistance to cold and hot blast. In order to meet the above conditions, we should try to use CCEWOOL aluminum silicate fiber with good thermal insulation performance. The better thermal insulation performance of the furnace, the less heat loss, the higher the heat utilization rate of the furnace, the better the energy saving effect.

     We hope that the above information about Energy Saving Application of CCEWOOL Aluminum Silicate Fiber in Ceramic kiln can bring some help to furnaces manufactures.
